Your Vehicle
Suzuki SX4 1.6 DDiS 90hp
Technical Specifications
Power and torque increase
Stage 1: software remap only, no mechanical changes, fully reversible.
Stage 1: file 100 € online + installation 350 € at the workshop (via the OBD port) Book now
Power HP
Torque Nm
Buy the Stage 1 file, pay the installation at the workshop
100 € VAT included: the file developed for your engine, paid online
Installation: 350 € network price, the workshop may charge less, paid at the chosen workshop (via the OBD port) · terms

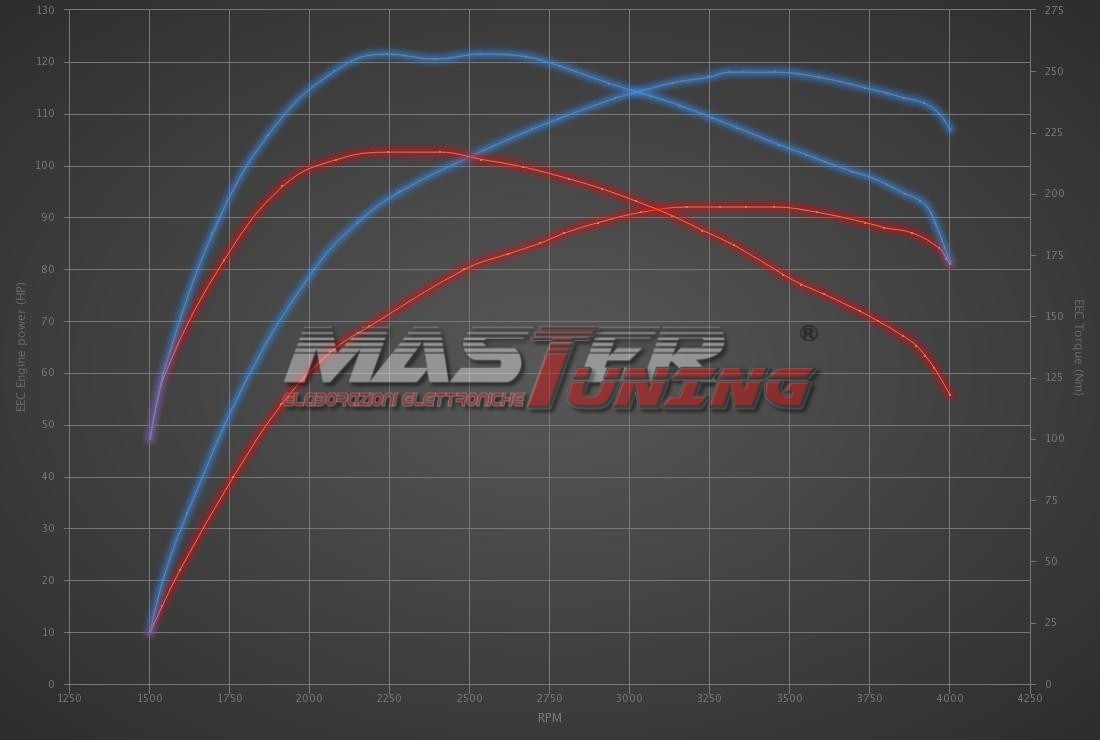

Power Graph
Suzuki SX4 1.6 DDiS 90hp: da 90 a 115HP
Remapping Suzuki SX4
MasterTuning develops remapping for Suzuki. La Suzuki SX4 1.6 DDiS 90hp può passare da 90 HP a 115 HP con un incremento di 25 HP.
The development of each remap is customized by MasterTuning.
- 100% customised files with lifetime warranty
- Reference values for Stage 1: the file is developed on your vehicle and checked in the workshop
- Best performance, within safety margins
- Reduced fuel consumption
ECU Remapping Details Suzuki SX4 1.6 DDiS 90hp
The Suzuki SX4 1.6 DDiS 90hp is equipped with a diesel engine that produces 90 HP and 215 Nm of torque in its factory configuration. With MasterTuning's professional ECU remapping, this Suzuki can achieve 115 HP (+28%) and 260 Nm (+21%).
Our Stage 1 tuning for the SX4 All delivers an impressive gain of +25 HP and +45 Nm, optimizing the diesel engine's performance while maintaining reliability and staying within safe parameters.
The engine code D16AA identifies this specific powerplant configuration. The Bosch EDC16C39 / Bosch EDC16C34 ECU is professionally recalibrated to unlock hidden potential while preserving engine longevity.
As a diesel engine, this Suzuki responds exceptionally well to ECU tuning. Owners typically report improved throttle response, smoother power delivery, and in many cases, better fuel efficiency under normal driving conditions.
Technical Specifications — Suzuki SX4 1.6 DDiS 90hp
Factory technical data for the Suzuki SX4 1.6 DDiS 90hp (All), used by MasterTuning engineers to develop a remap tailored to this specific powerplant. Figures shown are reference values for Stage 1; the file is developed on your vehicle and checked in the workshop.
| Engine code | D16AA |
|---|---|
| ECU / Control unit | Bosch EDC16C39 / Bosch EDC16C34 |
| Fuel | Diesel |
| Compression ratio | 16.5 |
| Bore × stroke | 79.5 X 80.5 mm |
| Stock power | 90 HP · 215 Nm |
| Remapped power (Stage 1) | 115 HP (+25) · 260 Nm (+45) |
Don't want to touch the ECU?
Rapid Dimsport add-on modules connect to the engine sensors with original connectors: they fit in a few hours and come off without a trace, leaving the factory software untouched. Useful on a leased car, one still under warranty or one you plan to sell soon. Check which ones fit your Suzuki SX4.
Frequently Asked Questions - Suzuki SX4
How much power can I gain from remapping my Suzuki SX4?
With MasterTuning Stage 1, your Suzuki SX4 1.6 DDiS 90hp can gain +25 HP (from 90 to 115 HP) and +45 Nm of torque. This represents a 28% increase in power.
Which ECU does the Suzuki SX4 1.6 DDiS 90hp use?
The Suzuki SX4 1.6 DDiS 90hp uses the Bosch EDC16C39 / Bosch EDC16C34 engine control unit. MasterTuning recalibrates this ECU for Stage 1 and Stage 2.
What is the engine code of the Suzuki SX4 1.6 DDiS 90hp?
The engine code of the Suzuki SX4 1.6 DDiS 90hp is D16AA. You can find it in the vehicle documents or on the engine plate.
Is ECU remapping safe for the Suzuki SX4 engine?
Yes, MasterTuning's remapping for the Suzuki SX4 1.6 DDiS 90hp is developed within safe parameters. Each file is developed on your vehicle, checked in the workshop and stays within the mechanical limits of the D16AA engine.
Is the Suzuki ECU remapping reversible?
Absolutely. The original factory calibration of your Suzuki SX4 is always backed up before remapping. The process is 100% reversible at any time.
Will remapping affect my Suzuki warranty?
ECU remapping may affect your manufacturer warranty. We recommend checking your specific warranty terms. Many of our customers choose to remap after the warranty period or accept this trade-off for the significant performance gains.
